Raise3D

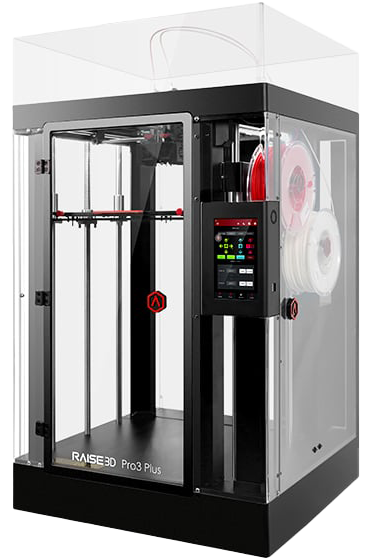

Raise3D Pro3 Plus 3D Printer

Regular price $9,999.00 CAD
Regular price Sale price $9,999.00 CAD
Sale Sold out

Raise3D Pro3+: Agile Production Made Simple

Forged from the Pro2 Series, Raise3D’s newly launched Pro3 Series professional dual extruder 3D printers meet the needs of both production and multi-sized rapid prototyping, with high precision and round-the-clock stable operation. The Pro3 Series is comprised of the Pro3, with a build volume of 300x300x300mm, and the Pro3 Plus, with a build volume of 300x300x605mm, fulfilling the requirements of large-scale production and multi-sized rapid prototyping. A high-quality printer design that includes enhanced features and a smart assistant system known as EVE, all of which make the Pro3 Series dual extruder 3D printers an excellent option for professional 3D printing.

The Pro3 Series dual extruder 3D printers connect with Raise3D’s 3D printing software ecosystem, that includes a 3D slicing program, ideaMaker, an open-software template called ideaMaker Library, and our cloud-based 3D printing software RaiseCloud.

Technical Specs

  • Build Volume (Single Extruder): 300 × 300 × 605 mm (W x D x H)
  • Build Volume (Dual Extruder): 255 × 300 × 605 mm (W x D x H)
  • Machine Size: 620 × 626 × 1105 mm (W x D x H)
  • Filament Diameter: 1.75mm
  • Print Head Travel Speed: 30–150 mm/s
  • Max Build Plate Temperature: 120ºC
  • Supported Materials: PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill
  • Layer Height: 0.01-0.25mm
  • Nozzle Diameter: 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
  • Max Nozzle Temperature: 300ºC
  • Connectivity: Wi-Fi, LAN, USB port, Live camera
  • Operating Ambient Temperature: 15-30ºC, 10-90% RH non-condensing

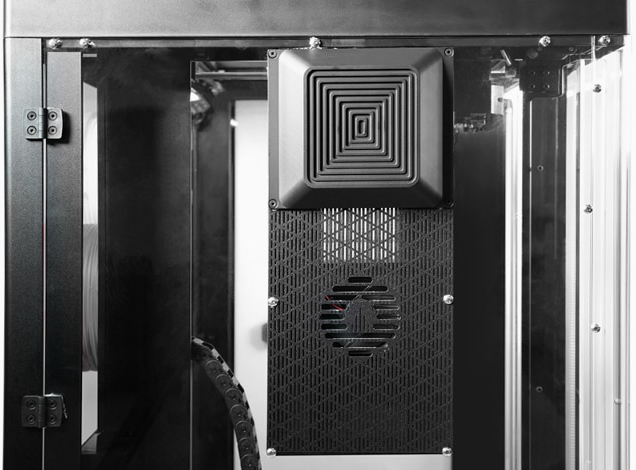

  • Filter: HEPA filter with activated charcoal
  • Net Weight: 61.15 kg

Electrical:

  • Power Supply Input: 100-240 V AC, 50/ 60 Hz 230 V @ 3.3A
  • Power Supply Output: 24 V DC, 600 W

Software:

  • Slicing Software: ideaMaker
  • Supported File Types: STL/ OBJ/ 3MF/ OLTP
  • Supported OS: WINDOWS/ macOS/ Linux
  • Machine Code Type: GCODE

Printer Controller:

  • Network: Wi-Fi, Ethernet
  • Screen Resolution: 1024 × 600
  • Motion Controller: Atmel ARM Cortex M7.400 MHZ FPU
  • Logic Controller: NXP i.MX6, Quad core 1 GHz ARM processor
  • Memory: 1GB
  • Onboard Flash: 16GB
  • OS: Embedded Linux
  • Ports: USB 2.0 x2, Ethernet x1

Highlights

AN IMPROVED PRINTING PLATFORM

The Pro3 Series features upgraded printing platform features for high-quality printing performance and a better overall experience. The new auto bed leveling makes setting up your 3D printer quicker and simpler.

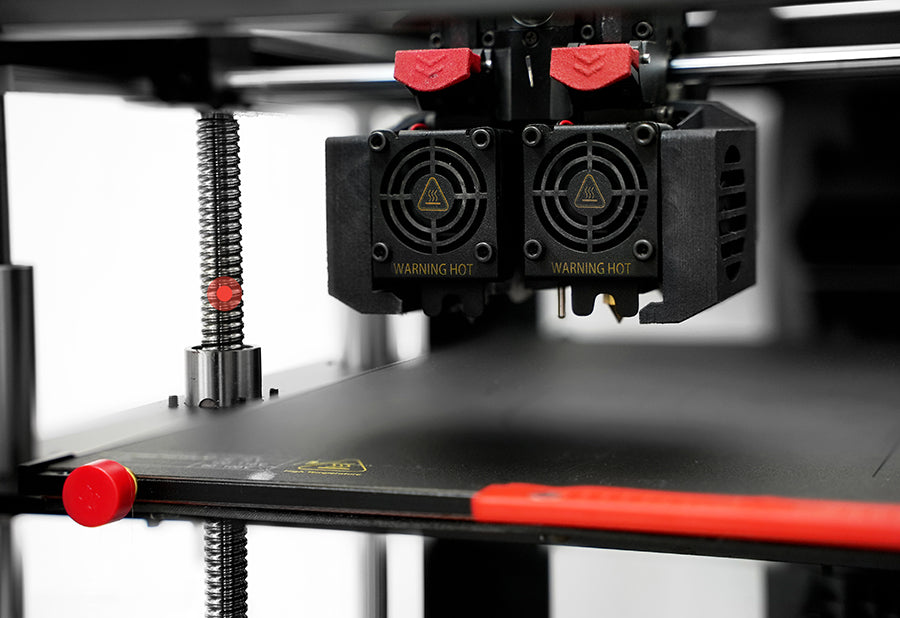

The new flexible build plate also allows for the effortless removal of 3D printed parts. The Z-axis rod stiffness has also been increased by 75%, in order to deliver a more stable performance. These structural changes enable the Pro3 Series to provide better print results and an easier printing experience.

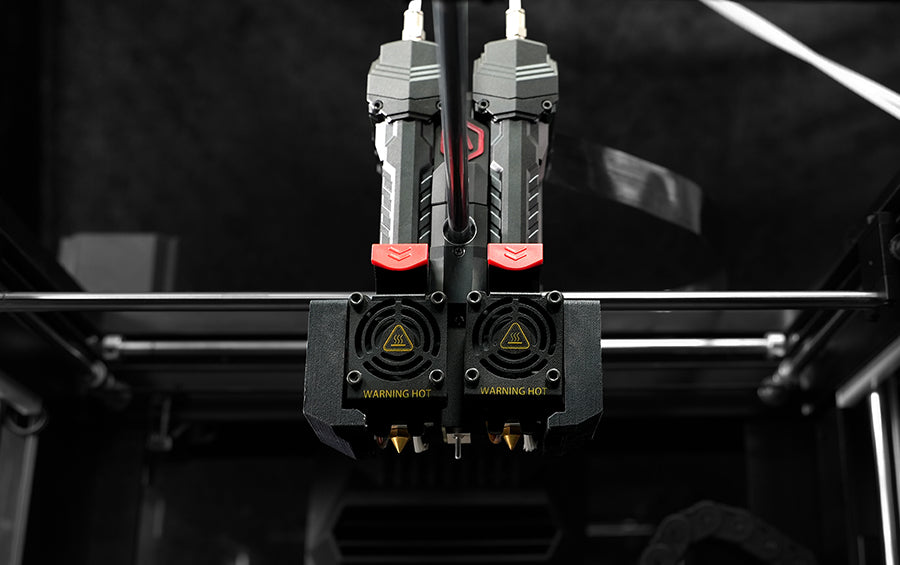

NEW HOT END & EXTRUDER FEATURES

The Pro3 Series is equipped with an independent modular extruder with a dual extrusion system. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow the convenient disassembly and replacement of components.

The hot end of the Pro3 Series is easy to remove, which can be done without using tools, making it simple to replace and maintain. Users can also easily take off the front cover of the extruder to accurately locate common printing occurrences such as filament jams.

POWER LOSS RECOVERY

Either a power outage or a filament outage (when the filament runs out) can cause a print job to be lost if they occur in the middle of the 3D printing process. However, the Pro3 Series has a filament run-out sensor on its extruders to alert when the filament is about to run out and saves the print job. It also has a second-generation power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.

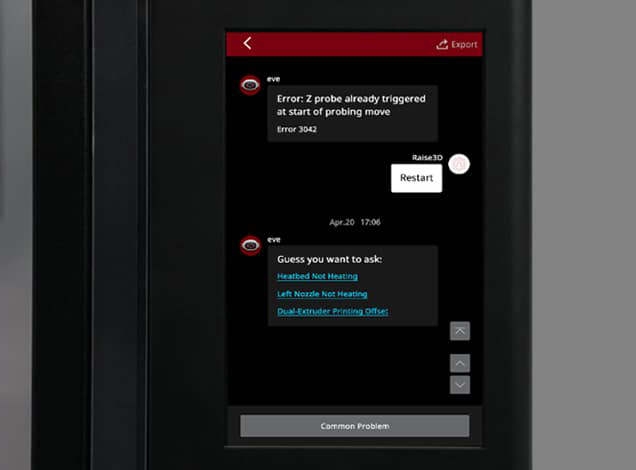

EVE SMART ASSISTANT

The Pro3 Series has a built-in EVE assistant system, preloaded with common printing problems and corresponding solutions. The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job.

The EVE assistant has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time. It also helps reduce maintenance time and communication costs for an efficient maintenance process.

LIGHTWEIGHT COMPONENTS

The Pro3 Series replaces the drag chain cable with a lightweight cable, to reduce the weight of the extruder and keep the center of gravity in the middle during printing for more stable print quality.

The Pro3 Series also uses digital temperature measurement, for an accurate temperature reading to help prevent jamming.

Overview

Exceptional Build Volume

The Pro3+ dual extruder 3D printer can print up to 300 x 300 x 605 mm. This flexibility allows the Pro3 Series to produce various kinds of tools, parts, and components. Some uses for 3D printers with this kind of build volume is in creating 3D printed tools to make professional manufacturing and rapid-prototyping more efficient.

Superior Bed Leveling

Bed leveling is the process of confirming that the printing platform is as level as possible. The Pro3 Series has this leveling procedure as an automated function. Auto bed leveling will maintain the distance between the print nozzles and the bed, to create a uniform build area. This improves bed adhesion and allows the extruder to adjust to even the most minor of surface contour changes for better final print quality.

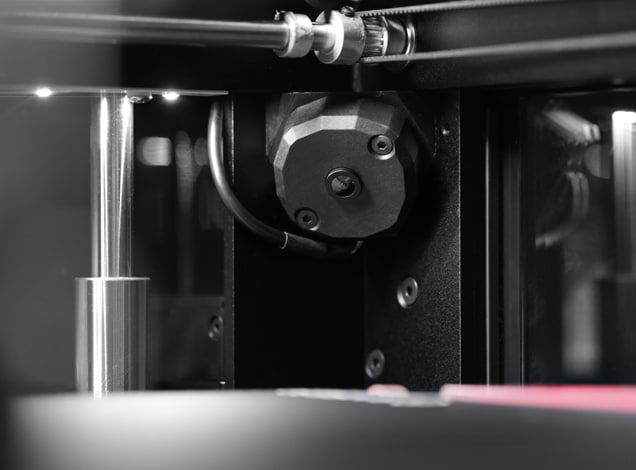

Cloud Based Print Tracking

The Pro3 Series uses a camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud, allowing users to keep track of every print job remotely and while on the move. This ability to check the 3D printing process gives end users peace of mind.

Accurate & Durable

High-quality 3D printing comes from high-quality 3D printers. The Pro3 Series desktop 3D printer uses a full metal frame to create a specific motion system that allows the machine to smoothly glide as it prints. This motion system works with precise positioning to ensure 3D print jobs are as accurate as possible.

Raise3D Pro3 Series Spec Sheet
