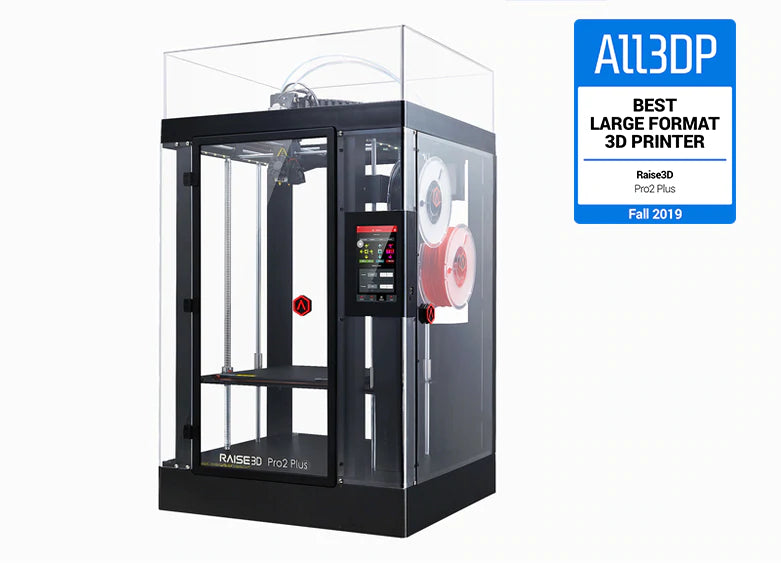

Raise3D Pro2 Plus 3D Printer
Born from the drive for absolute quality, the Pro2 Plus refines 3D printing for production-grade environments. Upgrading and evolving traditional manufacturing.
Highlights
- Dual Extruder: Electronic driven lifting, with 4× increased torque performance
- Massive Build Volume (12 x 12 x 23.8 in)
- Diverse Filament Compatibility (300℃)
- Filament Sensor / Camera / HEPA Filter
- Minimum 0.01mm Layer Height
- Resume Print after Power Outage
- 7" Touch Screen
- 32 Bit Motion Control Board
- Wireless Compatibility
Technical Specs
- Print Technology: FFF
-
Build Volume (W×D×H):
Single Extrusion Print: 12×12×23.8 in / 305×305×605 mm
Dual Extrusion Print: 11×12×23.8 in / 280×305×605 mm - Machine Size (W×D×H): 24.4×23.2×43.5 in / 620×590×1105 mm
- Print Head: Dual-head with electronic lifting system
- Filament Diameter: 1.75mm
- XY Step Size: 0.78125 micron
- Z Step Size: 0.078125 micron
- Print Head Travel Speed: 30 - 150 mm/s
- Build Plate: Heated aluminum build plate with magnetic holding
- Max Build Plate Temperature: 110 ºC
- Heated Bed Material: Silicone
- Build Plate Leveling: Pre-calibrated leveling
- Nozzle Diameter: 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
- Max Nozzle Temperature: 300 ºC
- Connectivity: Wi-Fi, LAN, USB port, Live camera
- Noise emission (acoustic): <50 dB(A) when building
- Operating Ambient Temperature: 15-30 ºC, 10-90% RH non-condensing
- Storage Temperature: -25℃ to +55℃, 10-90% RH non-condensing
Electrical
- Power Supply Input: 100-240V AC, 50/60Hz 230V @3.3A
- Power Supply Output: 24V DC, 600 W
- Slicing Software: ideaMaker
- Supported File Types: STL, OBJ, 3MF
- Supported OS: WINDOWS/ macOS/ LINUX
- Machine Code Type: GCODE
Printer Controller
- User Interface: 7 inch
- Touch Screen Network: Wi-Fi, Ethernet
- Resume Print after Power Outage: Second Generation
- Screen Resolution: 1024*600
- Motion Controller: ARM Cortex M7.400MHZ FPU
- Logic Controller: Freescale i.MX6, Quad core 1Ghz ARM processor
- Memory: 1GB
- Onboard Flash: 8GB
- OS: Embedded Linux
- Ports: USB 2.0*2, Ethernet*1
Supported Materials
- PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Filled / Carbon Fiber Enforced / Metal Particles Filled / Wood Filled
Overview

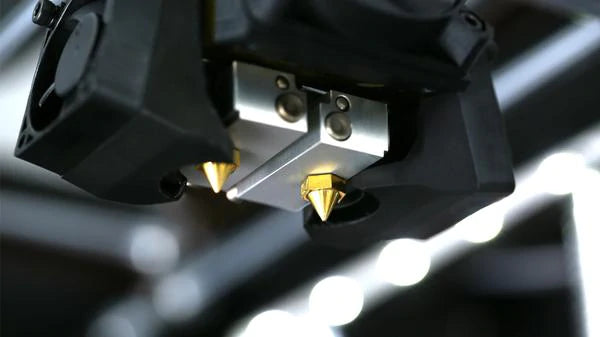

ELECTRONIC DRIVEN DUAL EXTRUSION WITH RETRACTING HOT ENDS
Prints complex mechanical parts, supports a variety of multi-material prints improves print speed.
- High repeatability (<0.005m, 5 micron)
- Lightning speed (<1 second switching time)
- 1.5mm lifting distance, compatible with flexible filaments
- High reliability (tested >100,000 times)
WHEN BIG IS NOT BIG ENOUGH
Single: 12×12×23.8 inch (305×305×605 mm)
Dual: 11×12×23.8 inch (280×305×605 mm)
- 24/7 Reliability
- Multiple fail safe systems
- Industrial grade components
HIGH RESOLUTION
Unique motion system for superior part quality and resolution
- Interchangeable nozzles: 0.2 mm nozzle for finer X/Y detail
- Precise positioning: 0.78125 micron positioning resolution on X/Y axis
- Unmatched layer resolution: 0.01 mm layer thickness
CAPABLE OF PRINTING A VARIETY OF FILAMENTS UP TO 300℃
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

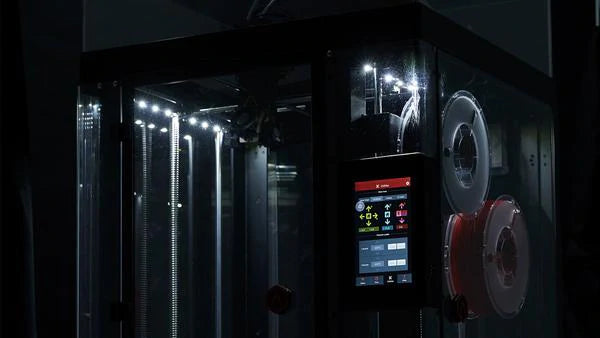

INTUITIVE USER EXPERIENCE
7-INCH TOUCH SCREEN
Visual interface / Rapid reviewing / Visual print progress / Full adjustment control
SECOND GENERATION POWER LOSS RESUMING
Never lose a print.

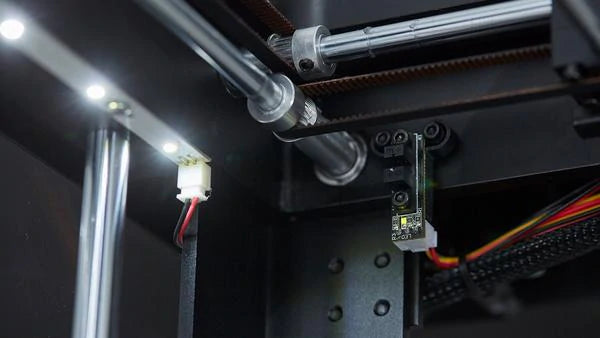

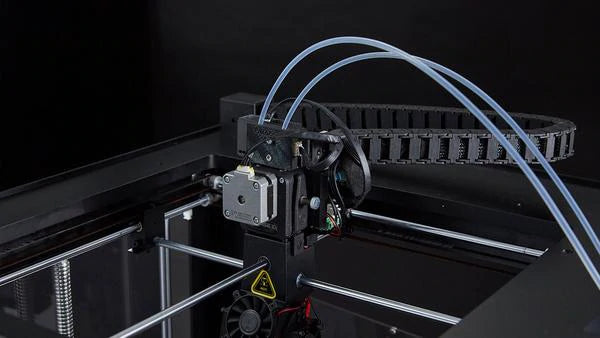

NEW EXTRUDER WITH FILAMENT RUN-OUT SENSOR
- Effortless, Dependable and Accurate with optical run-out sensors and end stops
- Better grip: Dual gear driven
- No slipping: 4× increased torque performance
- Worry-free prints: Optical run-out sensor
NEXT GENERATION MOTION CONTROLLER
Best in class reliability / Precise voltage control / Silky smooth movement / Superior thermal performance
- 400MHz ARM Cortex-M7 32bit RISC FPU
- Industrial grade components
- Stand-alone motor driver
- 256 micro-steps driver system
- Remote User Interface
- Access / Monitor / Control
- Operate efficiently with ideaMaker by connecting wirelessly to your Pro2 Series Printer
- HEPA Air Filtration
- Environmentally friendly
- Designed to silently remove nano-particles
BUILD PLATE SYSTEM
Excellent warping prevention / Even heat distribution / Longer lifetime / Easy to remove
- Aerospace grade material
- High temperature silicone heating bed
- Magnetically-held aluminium bed
- Improved 4+9 points lock system
Warranty
The limited warranty for the printer is 1 year. Raise3D Pro2 Series Limited Warranty
The warranty for the following parts is ninety (90) days from date of purchase:
- Heating rods
- Thermal sensors
- Heat bed
- Cooling fans
- Circuit boards such as:
- LCD
- LCD Logic Board
- Motion Controller Boards
- Extruder Boards
Warranty does not apply to consumables, such as:
- Hot ends
- Nozzles
- Fan covers
- Build surface
- Build plate
- Top cover
- Or other items that are expended during normal operation
- The warranty also does not cover external devices, accessories or parts added to the system after the printer was shipped
Appearance defects that do not affect product’s functioning are NOT covered by this warranty.
