Raise3D Pro2 3D Printer

$5,450.00 CAD
$5,450.00 CAD
Sale Sold out

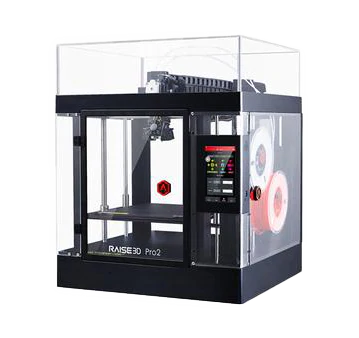

Raise3D Pro2 3D Printer

Competitive and scalable; the Pro2 3D printer improves upon it’s award winning predecessor and provides the next generation of performance.

Highlights

  • Electronic Driven, Dual Extrusion with Retracting Hot Ends; 4× Increased torque performance
  • Massive Build Volume (12×12×11.8 inch / 305×305×300 mm)
  • 0.01 mm Layer Height
  • Camera / HEPA Air Filtration
  • Diverse Filament Compatibility (Up to 300℃)
  • 32 Bit Motion Control Board
  • 7-inch Touch Screen
  • Resume Print after Power Loss or Filament Outage
  • Wireless Compatibility

Technical Specs

  • Print Technology: FFF
  • Build Volume (W×D×H):
    Single Extrusion Print: 12×12×11.8 in / 305×305×300 mm
    Dual Extrusion Print: 11×12×11.8 in / 280×305×300 mm
  • Machine Size (W×D×H): 24.4×23.2×29.9 in / 620×590×760 mm
  • Print Head: Dual-head with electronic lifting system
  • Filament Diameter: 1.75mm
  • XY Step Size: 0.78125 micron
  • Z Step Size: 0.078125 micron
  • Print Head Travel Speed: 30 - 150 mm/s

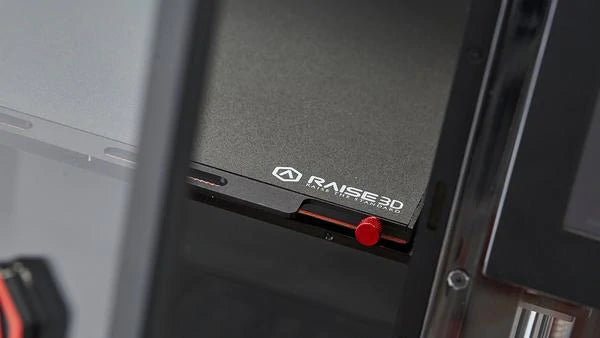

  • Build Plate: Heated aluminum build plate with magnetic holding
  • Max Build Plate Temperature: 110 ºC
  • Heated Bed Material: Silicone
  • Build Plate Leveling: Pre-calibrated leveling
  • Nozzle Diameter: 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
  • Max Nozzle Temperature: 300 ºC
  • Connectivity: Wi-Fi, LAN, USB port, Live camera
  • Noise emission (acoustic): ＜50 dB(A) when building
  • Operating Ambient Temperature: 15-30 ºC, 10-90% RH non-condensing
  • Storage Temperature: -25℃ to +55℃, 10-90% RH non-condensing

Electrical

  • Power Supply Input: 100-240V AC, 50/60Hz 230V @3.3A
  • Power Supply Output: 24V DC, 600 W

Software

  • Slicing Software: ideaMaker
  • Supported File Types: STL, OBJ, 3MF
  • Supported OS: WINDOWS/ macOS/ LINUX
  • Machine Code Type: GCODE
  • Printer Controller User Interface: 7 inch
  • Touch Screen Network: Wi-Fi, Ethernet
  • Resume Print after Power Outage: Second Generation
  • Screen Resolution: 1024*600
  • Motion Controller: ARM Cortex M7.400MHZ
  • FPU Logic Controller: Freescale i.MX6, Quad core 1Ghz ARM processor
  • Memory: 1GB
  • Onboard Flash: 8GB
  • OS: Embedded Linux
  • Ports: USB 2.0*2, Ethernet*1

Supported Materials

  • PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Filled / Carbon Fiber Enforced / Metal Particles Filled / Wood Filled

Overview

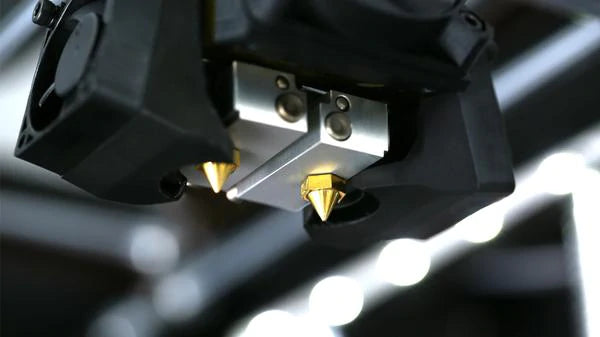

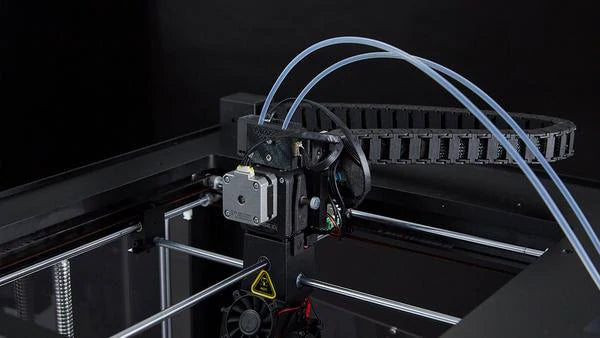

ELECTRONIC DRIVEN DUAL EXTRUSION WITH RETRACTING HOT ENDS

Prints complex mechanical parts, supports a variety of multi-material filaments and improves print speed.

  • High repeatability (<0.005m, 5 micron)
  • Lightning speed (<1 second switching time)
  • 1.5mm lifting distance, compatible with flexible filaments
  • High reliability (tested ＞100,000 times)

BIG BUILD VOLUME

Single: 12×12×11.8 inch (305×305×300 mm)
Dual: 11×12×11.8 inch (280×305×300 mm)

  • 24/7 Reliability
  • Multiple fail safe systems
  • Industrial grade components

HIGH RESOLUTION

Unique motion system for superior part quality and resolution

  • Interchangeable nozzles: 0.2 mm nozzle for finer X/Y detail
  • Precise positioning: 0.78125 micron positioning resolution on X/Y axis
  • Unmatched layer resolution: 0.01 mm layer thickness

CAPABLE OF PRINTING A VARIETY OF FILAMENTS UP TO 300℃

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

INTUITIVE USER EXPERIENCE

7-inch Touch Screen

Visual interface / Rapid reviewing / Visual print progress / Full adjustment control

Warranty

The limited warranty for the printer is 1 year. Raise3D Pro2 Series Limited Warranty

The warranty for the following parts is ninety (90) days from date of purchase:

  • Heating rods
  • Thermal sensors
  • Heat bed
  • Cooling fans
  • Circuit boards such as:
    • LCD
    • LCD Logic Board
    • Motion Controller Boards
    • Extruder Boards

Warranty does not apply to consumables, such as:

  • Hot ends
  • Nozzles
  • Fan covers
  • Build surface
  • Build plate
  • Top cover
  • Or other items that are expended during normal operation
  • The warranty also does not cover external devices, accessories or parts added to the system after the printer was shipped

Appearance defects that do not affect product’s functioning are NOT covered by this warranty.
