Raise3D

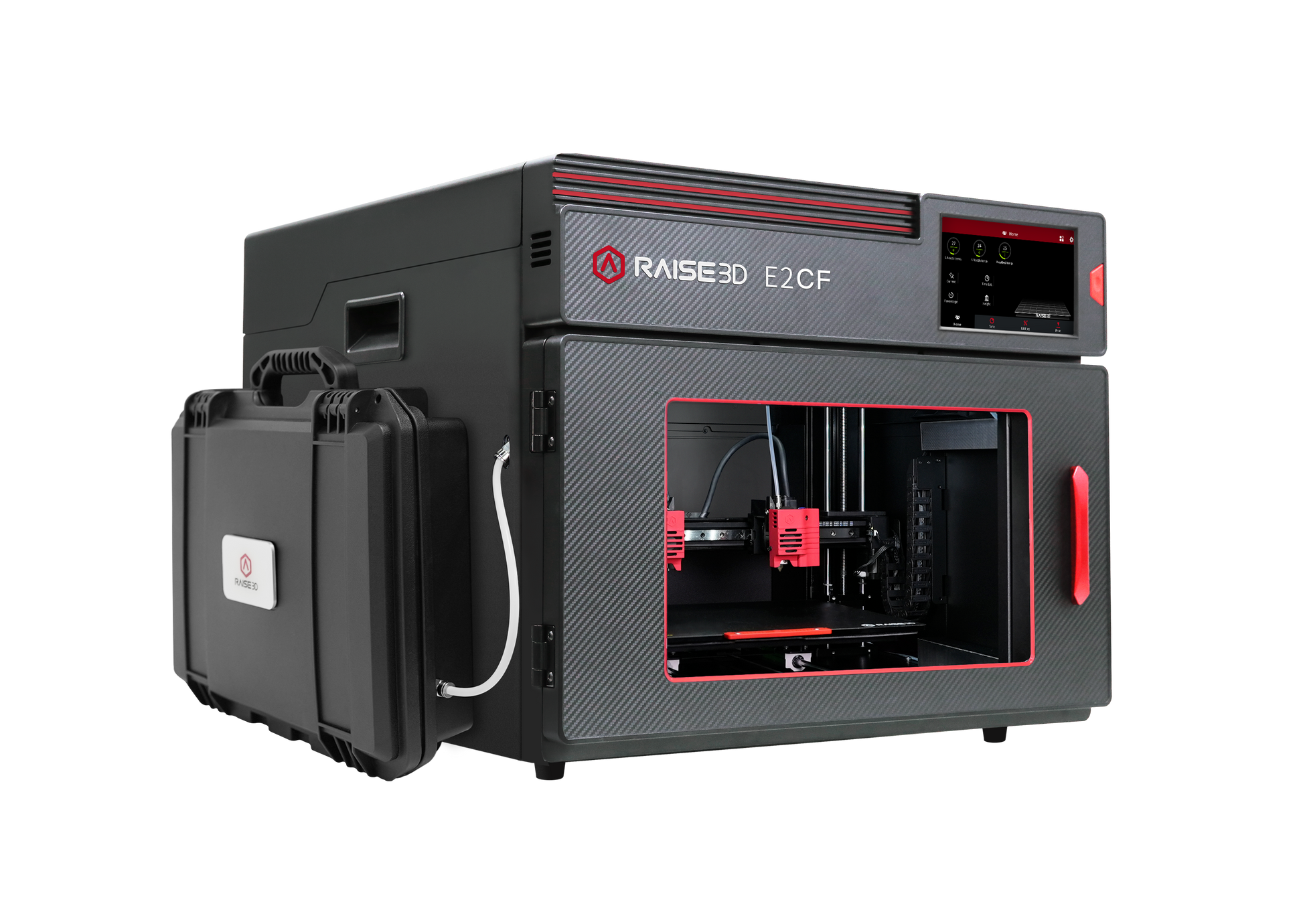

Raise3D E2CF IDEX 3D Printer

Regular price $5,850.00 CAD
Regular price Sale price $5,850.00 CAD
Sale Sold out

Carbon Fiber 3D Printing Made Simple

E2CF is a desktop 3D printer developed by Raise3D for carbon fiber-reinforced filaments and other composite materials. Carbon fiber filament has low density, high strength, and it is resistant to corrosion, static electricity and high temperature. It has a wide potential for application in industries that need considerable strength-to-weight ratio in their solutions, such as the aviation industry and the automotive field. The E2CF prints with accuracy, is user friendly, stable when operating and durable. It is a one-stop desktop-level manufacturing tool suitable for various scenarios.

Technical Specs

  • Build Volume (Single Extruder): 330 × 240 × 240 mm (W x D x H)

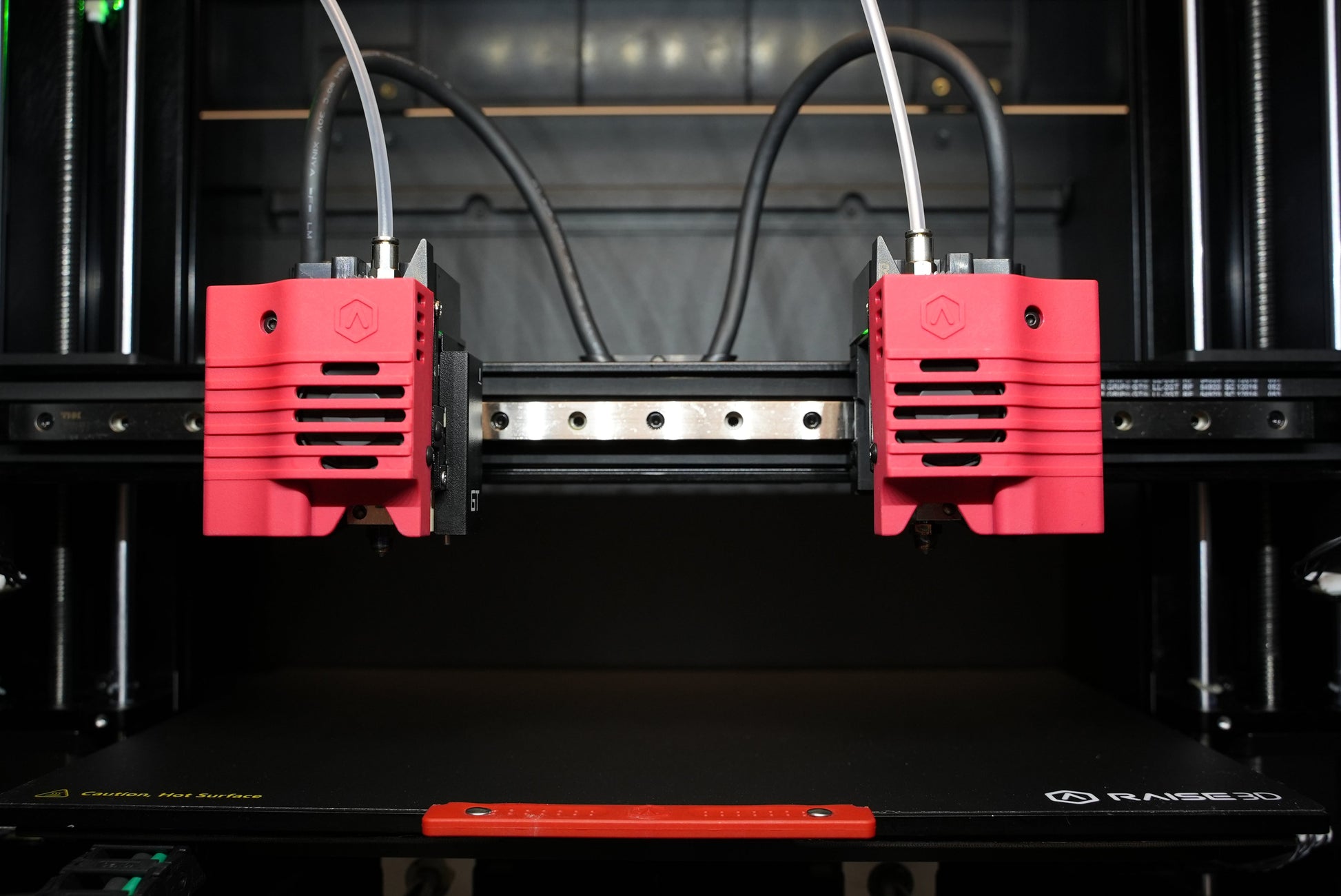

  • Build Volume (Dual Extruder): 295 × 240 × 240 mm (W x D x H)
  • Machine Size: 607 × 596 × 465 mm (W x D x H)
  • Filament Diameter: 1.75mm
  • Print Head Travel Speed: 30–150 mm/s
  • Max Build Plate Temperature: 110ºC

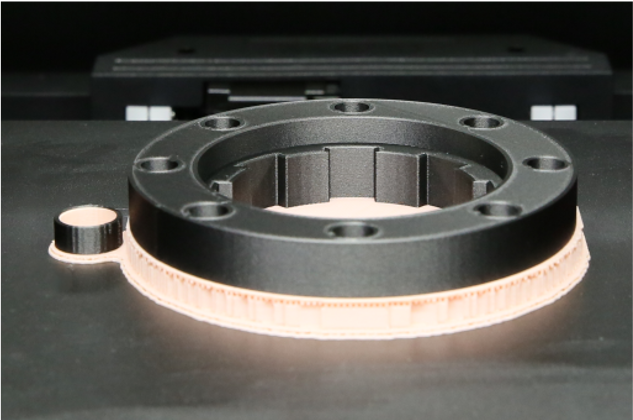

  • Supported Materials: Raise3D Industrial PA12 CF, PA12 CF Support, PPA CF, PPA GF, PPA Support (PET CF and PPS CF Coming soon)
  • Layer Height: 0.1-0.25mm
  • Nozzle Diameter: 0.4 mm (Default), 0.6/ 0.8 mm (Available)
  • Max Nozzle Temperature: 300ºC
  • Connectivity: Wi-Fi, LAN, USB port, Live camera
  • Operating Ambient Temperature: 15-30ºC, 10-90% RH non-condensing
  • Storage Temperature: -25 to +55℃, 10-90% RH non-condensing
  • Filter: HEPA filter with activated charcoal
  • Net Weight: 32.4 kg

Electrical:

  • Power Supply Input: 100-240 V AC, 50/ 60 Hz 230 V @ 2 A
  • Power Supply Output: 24 V DC, 350 W

Software:

  • Slicing Software: ideaMaker
  • Supported File Types: STL/ OBJ/ 3MF/ OLTP
  • Supported OS: WINDOWS/ macOS/ Linux

Printer Controller:

  • Network: Wi-Fi, Ethernet
  • Screen Resolution: 1024 × 600
  • Motion Controller: Atmel ARM Cortex-M4 120 MHz FPU
  • Logic Controller: NXP ARM Cortex-A9 Quad 1 GHz
  • Memory: 1GB
  • Onboard Flash: 16GB
  • OS: Embedded Linux
  • Ports: USB 2.0 x2, Ethernet x1

Highlights

HIGHLY DURABLE NOZZLES

The E2CF sports new silicon carbide nozzles, which have excellent wear resistance and thermal conductivity. This will effectively lessen the abrasion that carbon fiber composite filaments subject the nozzle to when printing, making the nozzle much more durable.

Currently Raise3D is in the process of manufacturing newer, more sustainable materials suitable for printing Carbon Fiber filaments. Keep an eye out for them in the near future!

DUAL GEAR BASED EXTRUSION SYSTEM

With a custom gear tooth profile, the E2CF allows filament to be firmly held in place to ensure that it does not slip when extruding. The force of the system is optimized to ensure maximum stability during your most challenging prints.

The gears within the extruder are made of a high-hardness steel and have been heat-treated for better wear resistance, allowing you to achieve the best print every time!

INTUITIVE PRINT RECOVERY

Either a power outage or a filament outage (when the filament runs out) can cause a print job to be lost if they occur in the middle of the 3D printing process. However, the E2CF has a filament run-out sensor on its extruders which will send an alert when the filament is about to run out, and will simultaneously save your print job.

The E2CF also has a power loss function to save the printing status in the event of a power outage and can continue printing from the same point when power is restored.

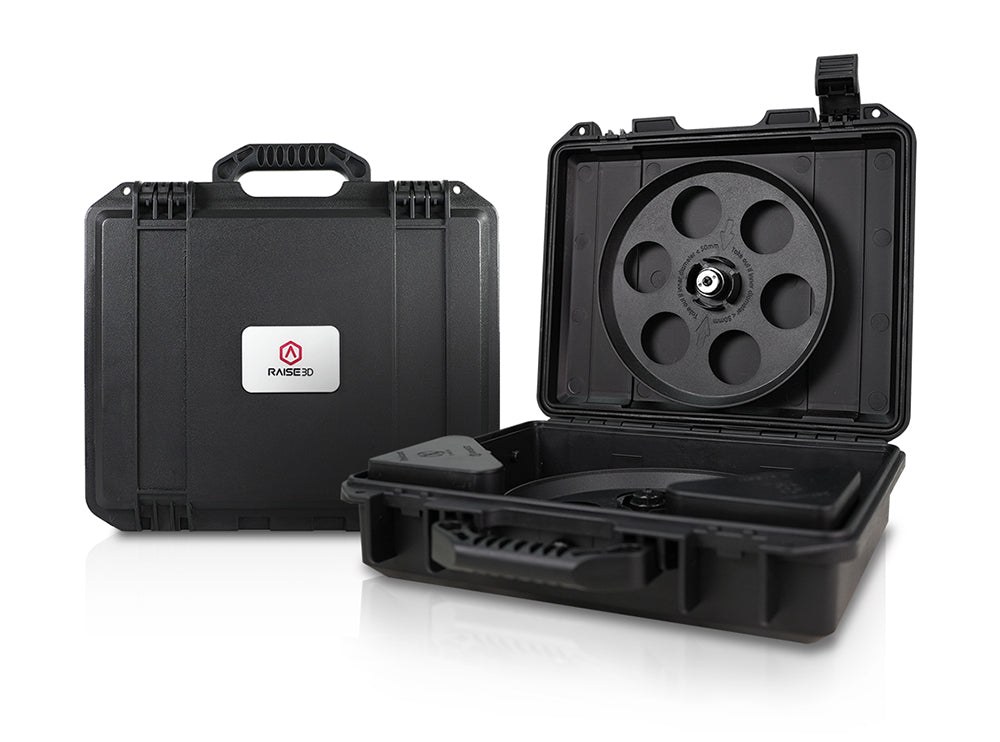

BUILT-IN FILAMENT STORAGE

The built-in suspension trays are used to place the filament and allow material to be pulled more smoothly. When closed, they can effectively prevent dust and moisture from affecting the material, for a period of up to 30 days*.

*From Raise3D test data

A WIDE RANGE OF SLICING PROFILES

The E2CF has slicing profiles that have been repeatedly tested and verified by our engineers in ideaMaker. There is no need to adjust the parameters before printing. Enjoy easy and high-quality printing.

Like other Raise3D products, the E2CF can carry out mass production and intelligent management using ideaMaker as the core software solution.

Overview

A High Quality & User-Friendly Workflow

Professional 3D printers, like the E2CF, are quality, user-friendly printers, designed with features to ensure the best possible printing results. For example, the E2CF has a flexible build plate, which allows 3D printed parts to be easily removed, while minimizing potential damage to the part during removal.

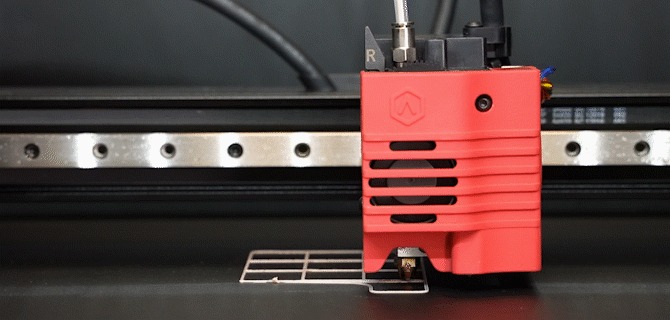

Superior Bed Leveling

Bed leveling is the process of confirming that the printing platform is as level as possible. The E2CF has this leveling procedure as an automated function. Auto bed leveling will maintain the distance between the print nozzles and the bed, to create a uniform build area. This improves bed adhesion and allows the extruder to adjust to even the most minor of surface contour changes for better final print quality.

Cloud Based Print Tracking

The E2CF uses a camera to monitor the entire 3D printing process of every print job. This camera operates by connecting to RaiseCloud, allowing users to keep track of every print job remotely and while on the move. This ability to check the 3D printing process gives end users peace of mind.

Accurate & Durable

High-quality 3D printing comes from high-quality 3D printers. The E2CF desktop 3D printer uses a full metal frame to create a specific motion system that allows the machine to smoothly glide as it prints. This motion system works with precise positioning to ensure 3D print jobs are as accurate as possible.

Raise3D E2CF Spec Sheet
