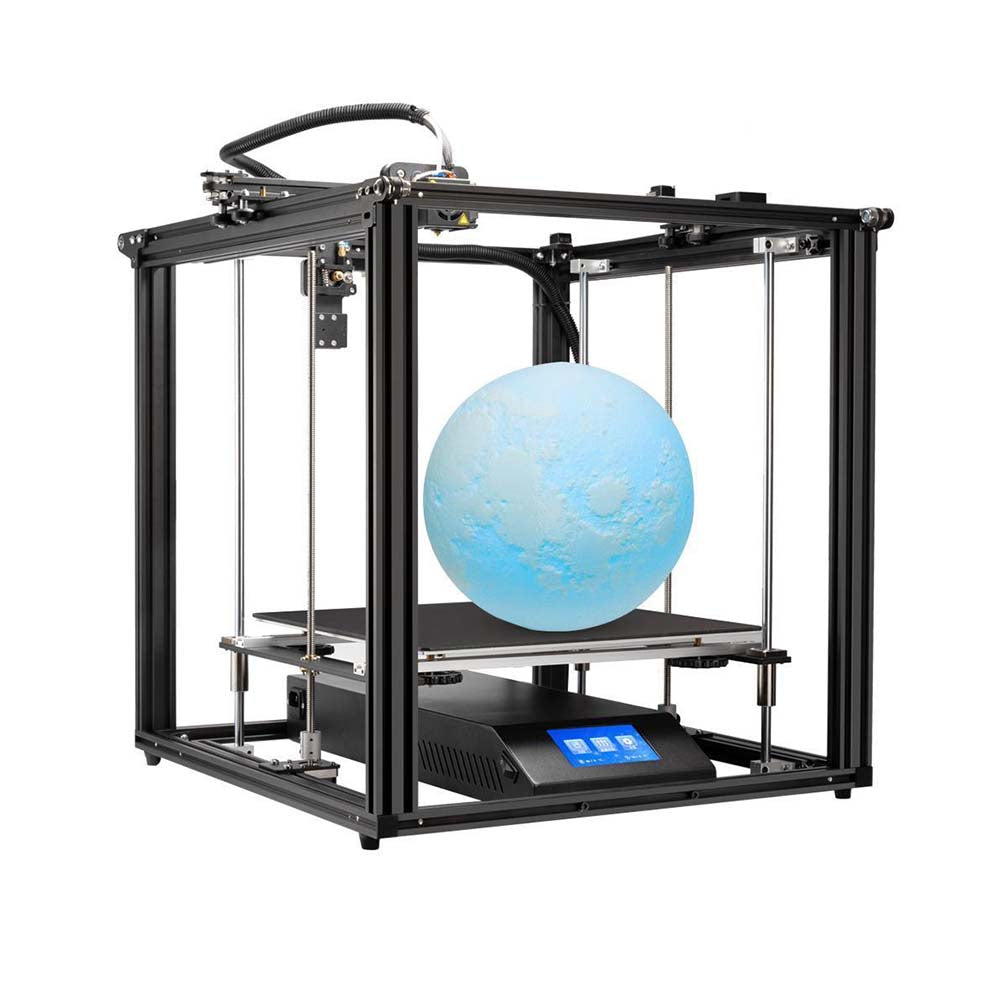

Creality Ender 5 Plus 3D Printer
Creality Ender 5 Plus 3D printer | Ultra Large scale 3d printer redesigned, bl touch pre-installed for easier auto-leveling, filament sensor equipped to avoid occasional printing errors, and dual Y-axis are also added for helping stable printing and smoother transmission.
Creality Ender 5 Plus 3D Printer
A bigger build volume, a new bed-leveling probe, improved components
Ender 5 Plus 3D Printer Features
Cubic-like Frame Designed: Creality Ender 5 Plus 3D printer is the larger version of the Creallity Ender 5 3D printer, with the same cubic designed, solid cube frame. Box Design with Overhead Gantry.

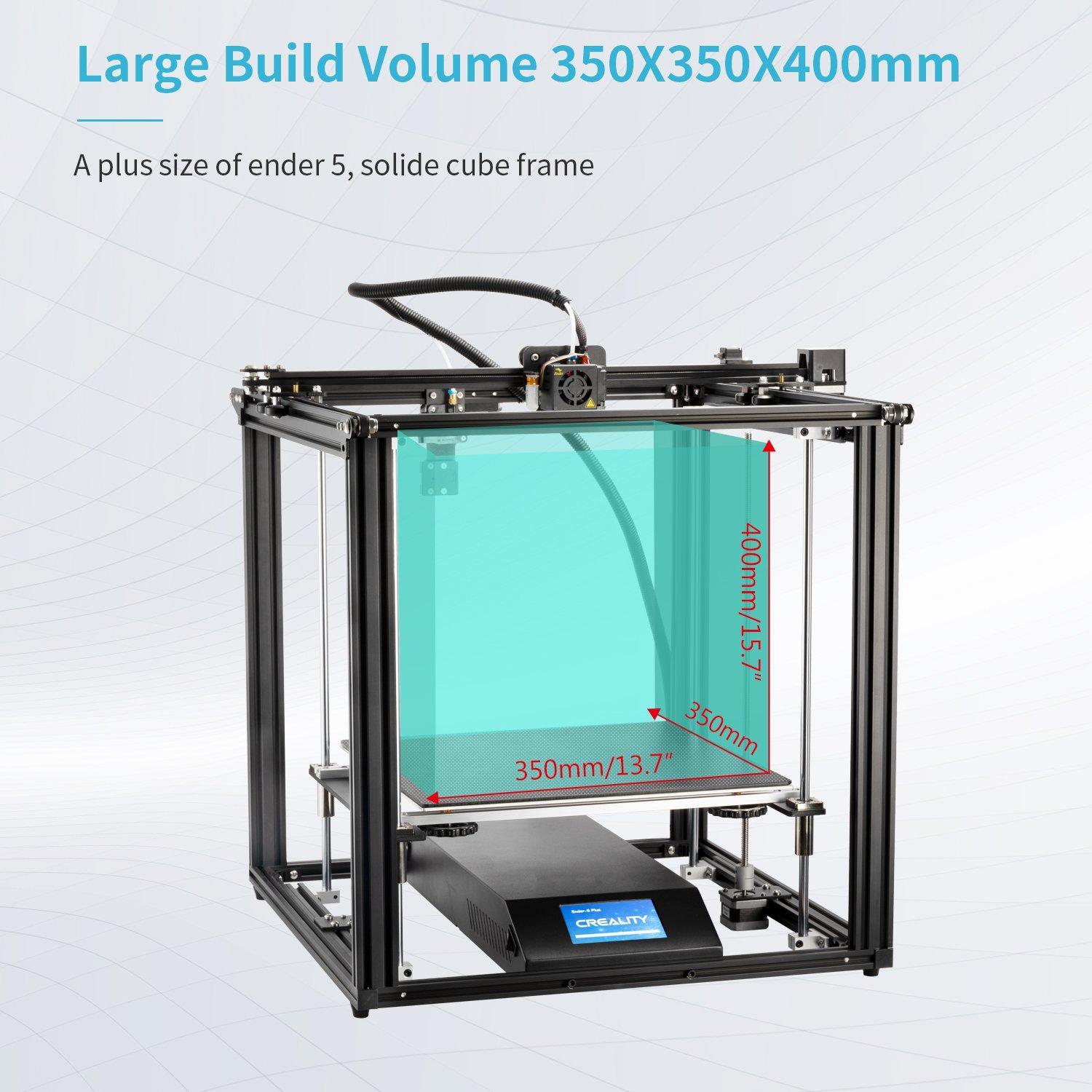

Ultra Large Printing Format: 350*350*400mm | Meet more of your printing requirements, enable more ideas to be printed out, achieve better print results, and a larger print model at a time.

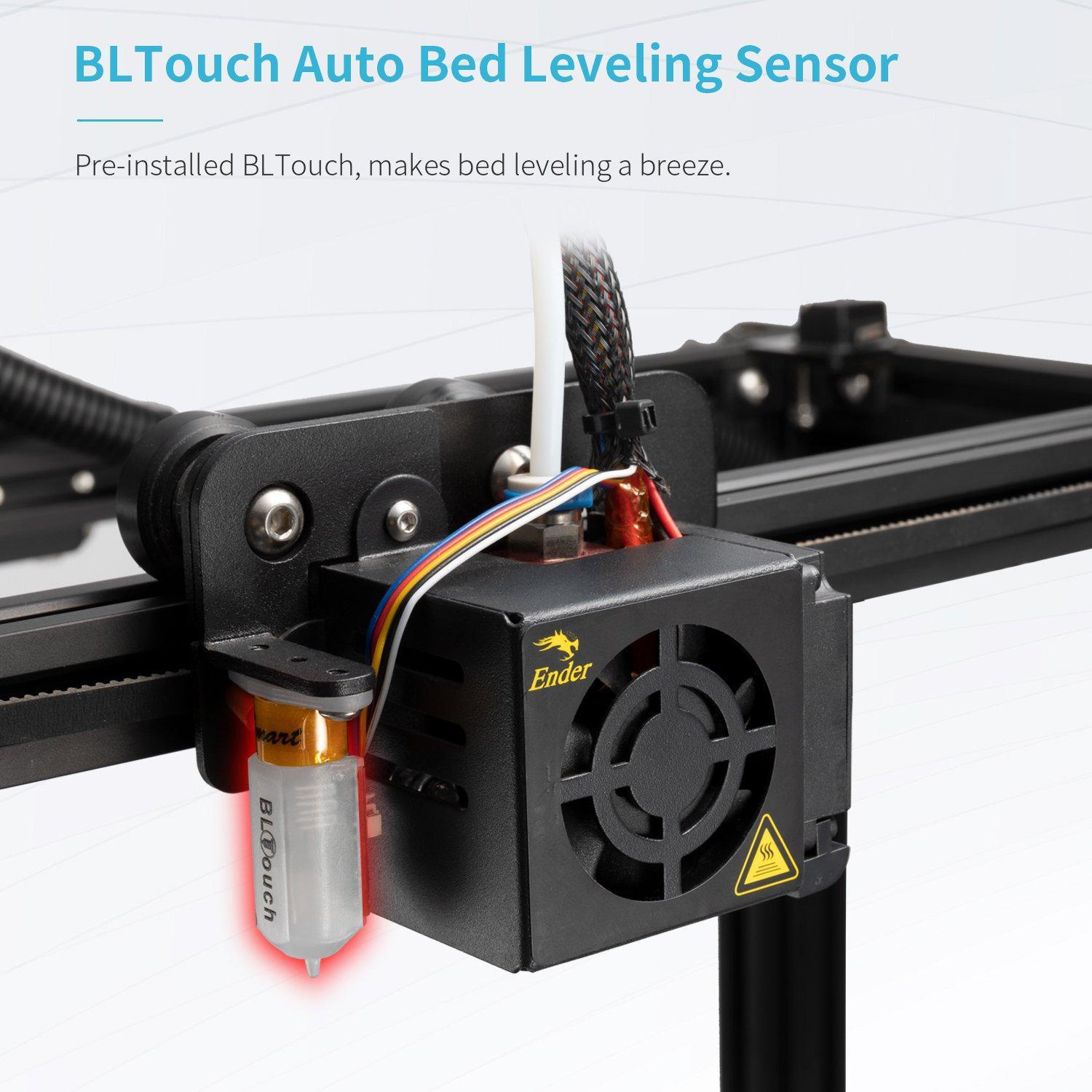

BL Touch Pre-Installed: Creality Ender 5 Plus 3D printer with BL Touch as configured. You just plug them in and start printing!
It can precisely measure tilt of the bed surface, offers the automatic compensation for the Z-axis for unevenness of the platform plate, easy to solve the printing failure caused by the unevenness of the platform and provide reliable operation with all build surfaces.

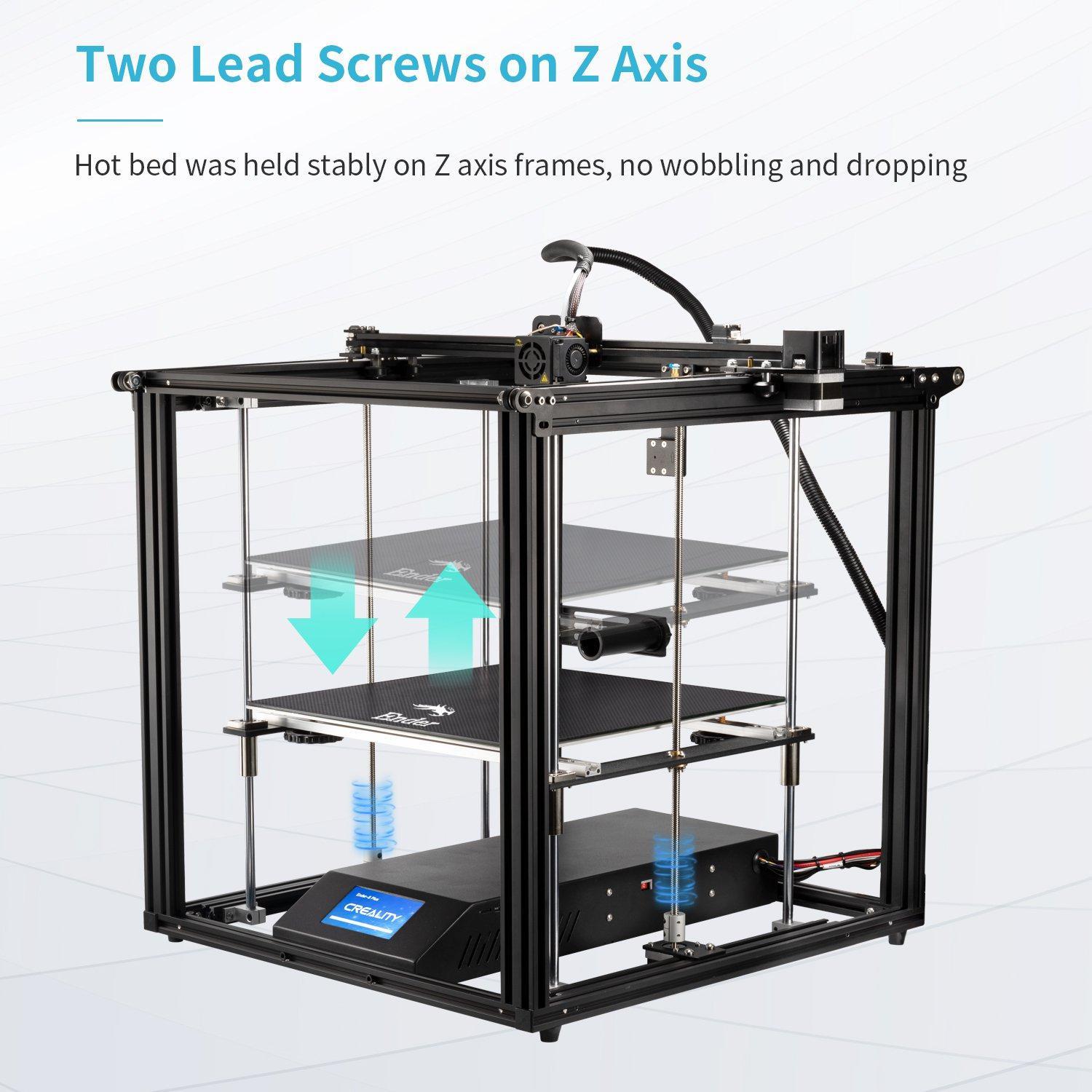

Stable Printing: Unlike Creality Ender 5, Creality Ender 5 Plus 3D printer is with dual Z-axis. Stable Z-axis leads screw drive smoothly and steady. The movement of the build plate will be more stable.
Filament Sensor: When the filament runs out or disconnected, Creality Ender 5 Plus 3D printer will automatically be suspended to ensure the model can be smoothly printed.
Resume Printing Function: Creality Ender 5 Plus 3D printer resumes printing while power-off, the motherboard is fully upgraded and supports continuous power failure, which effectively reduces model scrapping caused by power outages.
Technical Specifications
Creality Ender 5 Plus 3D Printer Properties
Modeling Technology: FDM (Fused Deposition Modeling)
Printing Size: 350*350*400mm
Creality Ender 5 Plus 3D Printer Hardware
Machine Size: 632*666*619mm
N.W.: 18.2Kg

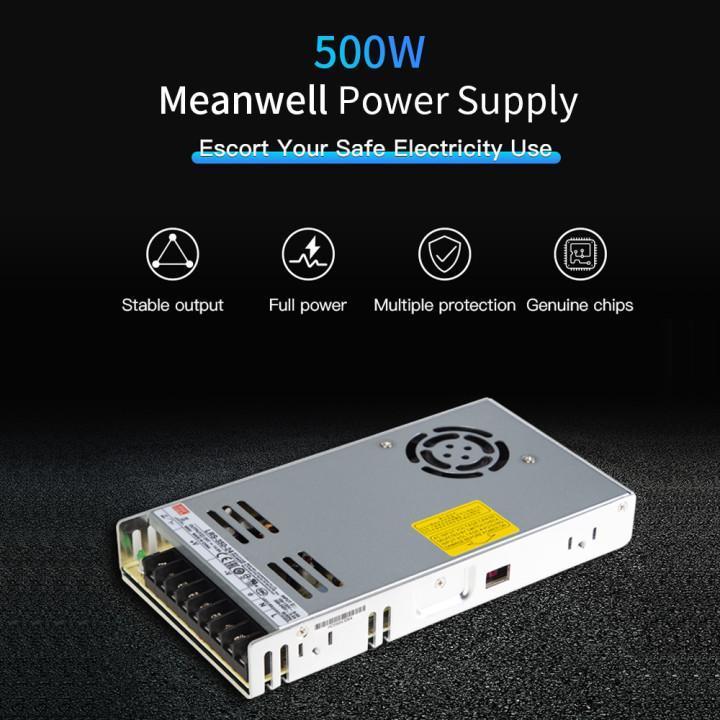

Power Parameters: Input: 100-240V AC; Output: DC 24V 21A, Max 25A
Creality Ender 5 Plus 3D Printer Extruder Hardware
Stock Nozzle: 0.4mm
Print Accuracy: ±0.1mm
Maximum Hotend Temperature: ≤260°C
